Cosmetic Ointment Manufacturing Machine For Cream Shampoo
Production
Product Parameters of Ointment Manufacturing Machine
| Capacity | Design volume: 250L, working capacity:200 L |
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter,
inspect light and sight glass, vacuum port, pressure meter(1 to
-0.1 bar), pressure clamp |
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm |
| Middle layer: SUS304 thickness: 2mm |
| Outside layer: SUS304 thickness:2mm |
| configuration | Bottom material exhaust, size: 1.5” |
| Temp. sensor (0-199℃) |
| Electrical heating: 18kw, cooling water inlet |
| Stirring system | Homogenization | 1．Material: SUS316L; standard homogenizer 2. Power: 4kw/380/50Hz; RPM: 2800R/Min |
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE |
1. Stirring scrap and middle stirring use the same motor 2,Power:2.2kw/380V/50Hz；RPM:21~118r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite
direction |
| Safety: 1. During stirring, the cover can not open, 2. Cover lift
can not stirring. |
| Vacuum system | 1. Vacuum pump: water recycle, power 2.2kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not
open) |
| Heating method | Jacket electrical heating |
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge
material |
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working
pressure:0.2 Mpa |
| Control box | SUS304 , 1.2mm thickness |
| Dimension | 3500mm×2450mm×2250 mm |
| Shelf is SS, platform with raised platform and SS guardrail |
| |
Working principle of Ointment Manufacturing Machine
The SED-200RZ main pot is composed of the cut-off mixing pot,
cut-off mixer unit, circulating system and the stirring system
etc.The materials are sucked into emulsifying pot by transportation
pipe under the vacuum state, or it also can be put from the feed
inlet.
Feature of Ointment Manufacturing Machine
1. The ultra-high viscosity emulsion shall be fully and evenly
stirred.
2. Vacuum suction, high production frequency and operation
frequency, simple and reliable operation.
3. It can be used for heating, melting, vacuum, homogeneous cooling
and consistent operation.
4. It is made of stainless steel, and the vacuum stirring is
sanitary, sterile, and easy to clean.
5. The newly developed ceramic gapless high shear homogenizing
emulsifier.

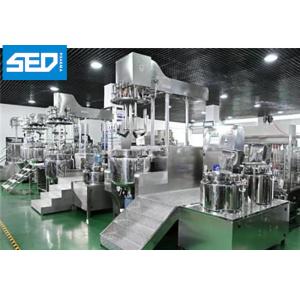

Show of Ointment Manufacturing Machine
Application of Ointment Manufacturing Machine
