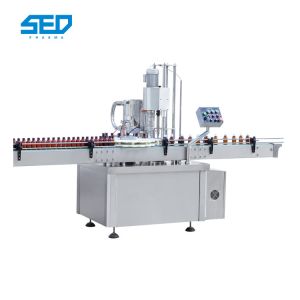

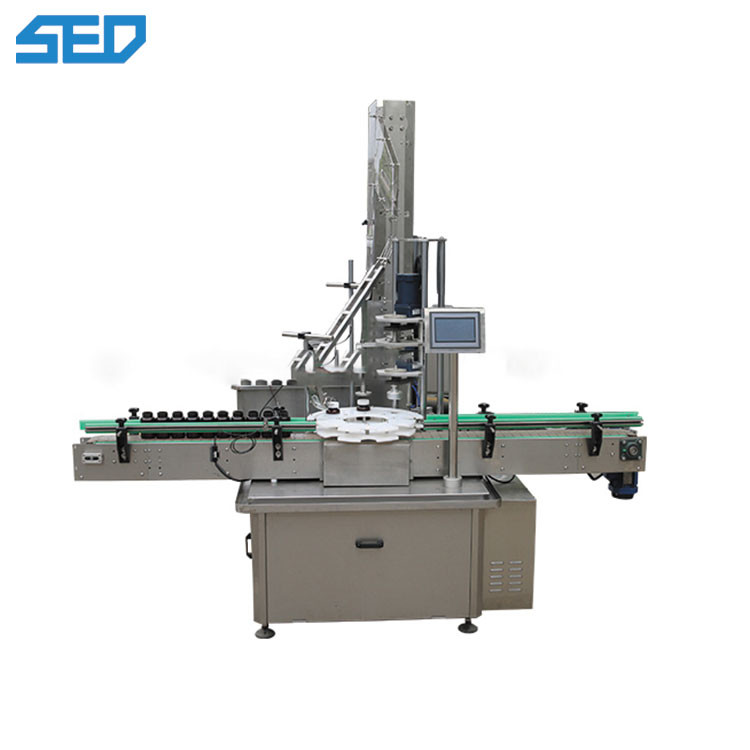

Automatic Packing Machine Automatic Linear Screw Bottle Capping Machine

Machine Introduction
SED-4CG Automatic Linear Screw Capping Machine is suitable for plastic and metal screw cap, which can handle a wide range of bottles without any change-parts for different bottle sizes. Our capping machine consists of two main components: the cap screwing unit and the cap feeding system with hopper. This capping machine is very ideal for application in Pharmaceutical, Food, Beverage, Cosmetic and other industries.

Working Principle

The operator pours caps into the hopper, and the cap elevator sorts and lifts the caps and conveys them to cap loading position through a feeding chute. The conveyor belt brings bottles forward continuously, and a bottle separation device controls the distance between bottles. When the bottle passes through the end of the cap feeding chute, a cap is automatically applied. Then a cap pressing head presses the cap into a horizontal angle, ready for future screwing. The machine has four pairs of constantly spinning wheels. These spinning wheels rotate to tighten the cap. The first pair of wheels rotate in the opposite direction to adjust the cap, ensuring higher accuracy of capping. After the cap is screwed, the aluminum foil detection device automatically detects the aluminum foil in the bottle cap, and if there is no aluminum foil, the bottle will be automatically rejected.

Machine Parameters of Bottle Capping Machine

Products Show of Automatic Packing Machine

Other Products We Manufacture:

1.Automatic Labeling Machine

2.Capsule Counting Machine

3.Pharmaceutical Machinery Equipment

4.Automatic Cartoning Machine

5.Powder Mixer Machine

6.Freeze Dry Machine

7.Automatic Packing Machine

8.Capsule Filling Machine

9.Tablet Press Machine

10.Liquid Filling Machine

Hangzhou Shengde Machinery Co.,Ltd. (Short for “SED Pharma”) was founded in 2012. It is a comprehensive pharmaceutical equipment supplier to provide pharmaceutical machinery, blood collection tube machinery, water treatment equipment, clean room facilities, pharma engineering for the pharma and biotech industry in the world. Since its foundation, We have supplied more than 600 equipment and systems for 180 pharmaceutical companies across over 20 countries and regions in the world which have been widely applied in the fields of liquid and lyo injectables, chemical API, bioengineering and pharma packaging, etc.

We focus on studying medicine manufacture science and process equipment manufacture science, practices medicine process knowledge integration with pharma equipment knowledge. We have been approved with all the international regulatory certifications like ISO9001, CE, BV, etc. To commit to our mission “Providing solutions to Pharmaceutical Industry”, We cooperates closely with well-known scientific research institutions and pharmaceuticals industry designing institutes to provide the most reasonable project design, the best quality equipment and the customized service to different pharmaceutical / medical factories from different markets.
